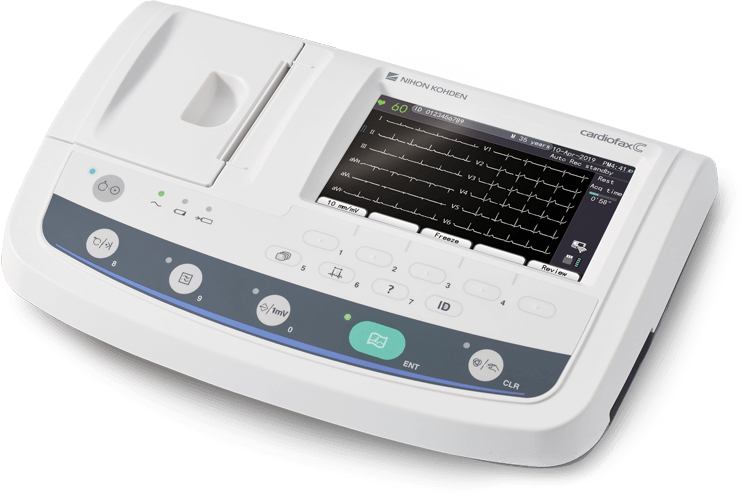

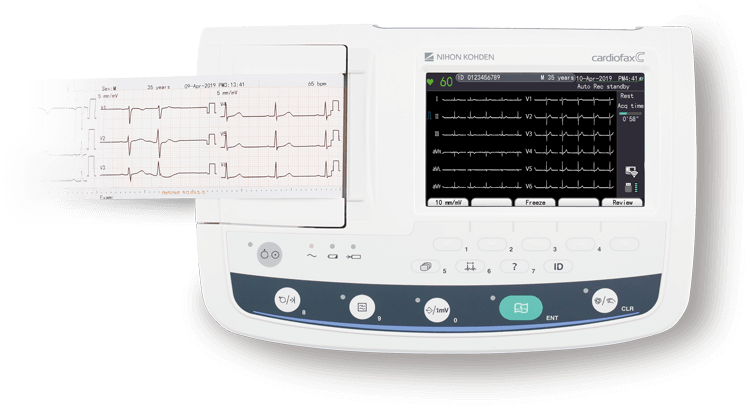

cardiofax C (ECG-3150)

ECG EASY ACCESS TO RELIABLE DIAGNOSIS

Nihon Kohden’s cardiofax C electrocardiograph is designed to support the daily routine of ECG diagnostics and offer high-level analysis for a reliable diagnosis. cardiofax C uses the Nihon Kohden ECG analysis program ECAPS 12C. It provides simultaneous 12-lead ECG acquisition and analysis with approximately 200 findings with active noise suppression. Accurate data supports fast diagnosis.

With its 5.0-inch display, 12-lead waveforms can be confirmed at a glance before recording. cardiofax C has a built-in LAN and supports paper-based and paperless workflows – waveform and analysis results can be transferred to a PC for review. The lightweight and compact design of cardiofax C and a long battery operation time support high mobility in the daily workflow.

WORKFLOW SUPPORT

• Easy-to-view: Its 5.0-inch display enables viewing of 12-lead ECG real-time waveform and data more easily. The preview function allows for checking 2.8 seconds 12-lead waveforms and analysis results before recording (3 channels).
• Electronic recording: Up to 800 ECG files can be stored in the internal memory and 3000 ECG files can be stored in an external USB flash disk. Moreover, ECG data can be transferred to a PC using a wired LAN. The ECG data can be reviewed and compared on a PC with Nihon Kohden’s optional ECG data management software polaris.one. Paperless ECG management saves time as well as money.
• Enhanced workflow: Supporting barcode or magnetic card reader which saves not only time when entering the patient ID but also reduces potential data entry errors.
• Highest mobility: Its lightweight and compact design of just 1.1kg and a long battery operation time of more than 180 minutes allow for the highest possible mobility in the daily workflow.

RELIABLE DIAGNOSIS WITH ADVANCED ANALYSIS

• High-level 12-lead ECG analysis: Cardiofax C includes Nihon Kohden’s latest interpretation program, the ECAPS 12C analysis program. It provides simultaneous 12-lead ECG acquisition for up to 24 seconds and analysis with approximately 200 findings and 5 -judgment categories. ECAPS 12C can also find typical waveforms of Brugada-type ECG.
• High-performance compliance with IEC 60601-2-25:2011: Cardiofax C complies with IEC standard IEC60601-2-25:2011, which approves high accuracy of signal processing (AC filtering), ECG measurement, and ECG analysis. It helps you with accurate ECG diagnosis."
